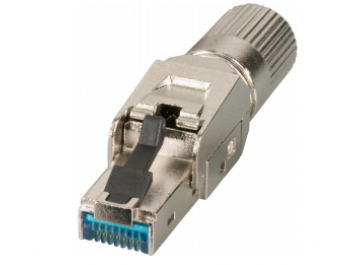

The INFRALAN® Cat. 6A Premium RJ45 is a highlight in the chain of further development of RJ45 connectors for field assembly. An extraordinarily robust full metal housing made of zinc die-casting paired with the unique variable cable feed opens up a wide range of application
possibilities.
Installation can be done in 9 different positions: 8 different angled positions and a 180° straight cable entry. The conical metal cable gland allows cable diameters from 6.0mm to 9.0mm. The connector meets the requirements of transmission class Cat. 6A/Class EA and supports the Ethernet protocol up to 10 Gigabit per second. The premium connector IVB-6A-S is the RJ45 for all cases.
USPs FIELD ASSEMBLY WIRE OR STRAND
Cable diameter AWG 22/1... 26/1, 22/7... 27/7 CABLE ENTRY STRAIGHT, ANGLED
VARIABLE 9 POSSIBLE POSITIONS MATERIAL ZINC DIE-CASTING
STRAIN RELIEF METAL GLAND
STANDARDS ISO11801, IEC60603-7-51 TRANSMISSION 10 GIGABIT ETHERNET CONTACTS 50μ" GOLD PLATED
LIFETIME > 750 MATING CYCLES CABLE THICKNESS 6,0MM TO 9,0MM

Egenskaper

• Category 6A (IEC) Model jack (jack)
• Cat6A
• Screened
• AWG litz 22-27
• AWG solid 22-26
