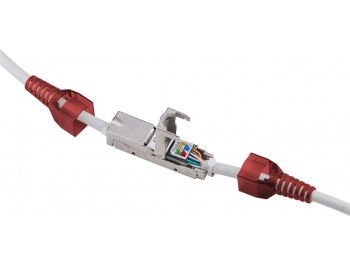

This cable connector is designed for eight-wire connection, extension, repair or rerouting of Cat 6 or 6A data/LAN cables, and does away with the need for bulky connection boxes.

It is incredible easy to assemble – no special tools required – and can be effortlessly extended in cable ducts while only taking up a small amount of space; its dimensions are 18 x 26 x 39 mm (W x H x L). Fully shielded housing made of die-cast zinc, featuring strain relief on both sides.

Egenskaper

• shield connection and strain relief integrated into housing
• incredibly easy to assemble – no special tools required
• easy-to-assemble connection of AWG 24/1 to 22/1 data cables
• cable diameter (solid wire): 0.5–0.64 mm
• cable diameter (strand): 0.61–0.76 mm
• suitable for cable sheath diameters of 5.0–9.7 mm
• max. bandwidth 250 MHz
• Length 65 mm Width 11 mm Height 11 mm
